Dolphin

/ Dolphin / Wall washer Series / Product /

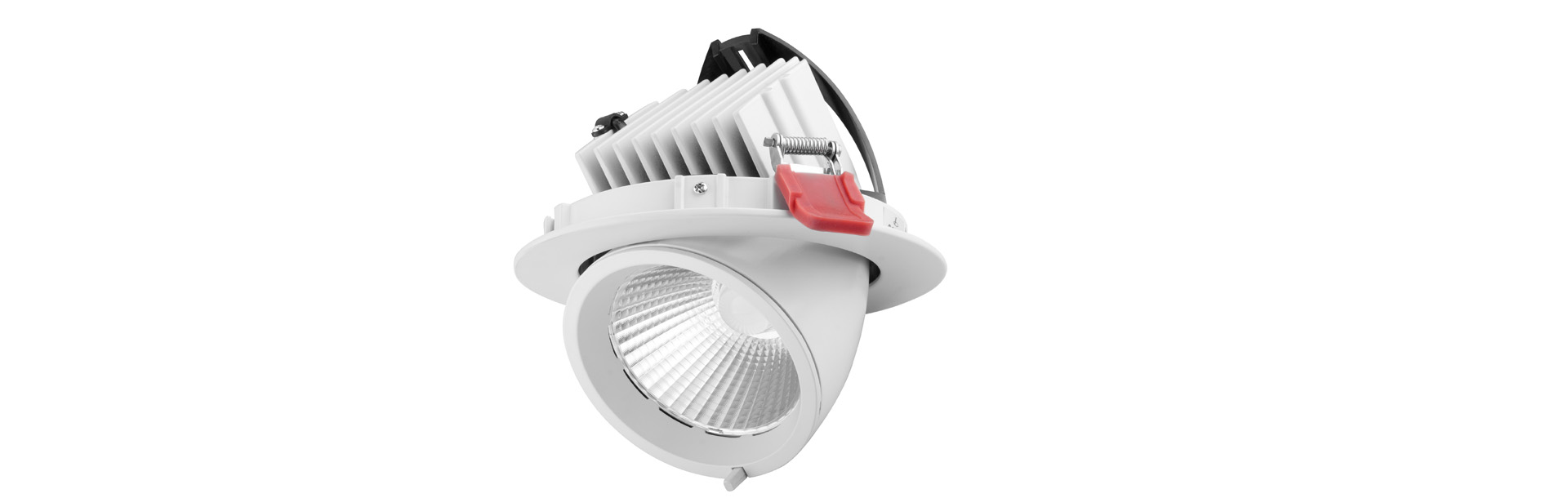

1. Classical down light made by die-cast aluminum.
2. Stretchable head provides a wide projection angle.
3. Excellent optical design with PC reflector and lens.
4. Widely applied to fashion shop, auto display and other commercial establishments.
Further versions on request

Light colours: 2700K or 4000K with CRI ≥ 90
Do you have further requirements with the product?

Please contact the consultant team in the following VACE office:
Call an VACE consultant: 86 +760 22559792
ADD:NO.11, First Street of Wencheng RD, Xiaolan Town, Zhongshan City

Structure and characteristics
Lighting technology
8817 303
Light source：
COB
LED Power：
12W
Beam angle：
15°/24°/40°
CCT：
3000K/4000K/5000K
LED lumens：
780lm
Color rendering index：
Ra≥80
Operating temperature：
-20℃-+40℃
Working life：
30000H
The output voltage：
37V
Output current：
270mA

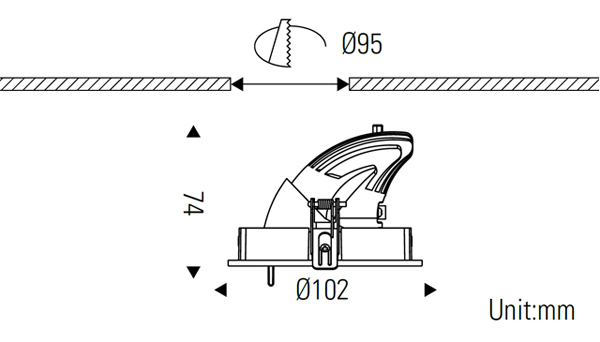

dimension：
102 x 74
Cut out：
95
Housing colour：
White,Black
Pictures of application
Service
Product overview120V/60Hz, 277V/60Hz

Light source

  COB

LED Power

  30W
  20W
  12W

Beam angle

  40°
  24°
  15°

CCT

  5000K
  4000K
  3000K

LED lumens

  780lm
  2200lm
  1300lm

Housing colour

  White
  Black
Other ranges in the product group: Luminaires for track

CrownWall washer Series

DolphinWall washer Series
