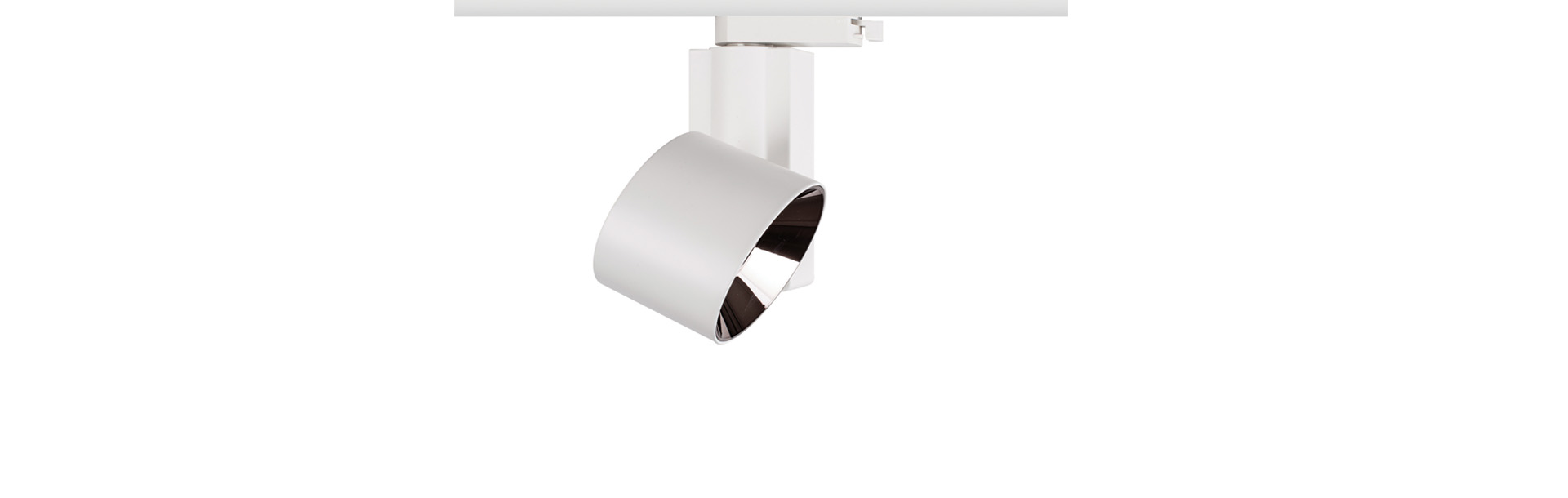

1. classic combined square with round shape design, simple and generous.
2. Black light technical application, excellent anti-glare design, improve comfortable light environment.
3. Cree light source and OSRAM driver promote lifespan to 50000H
4. Various reflector color option.
5. Anti-glare front ring honey comb is optional. Color lens offer options to define your space with different color.
6. Widely applied to gallery,fashion shop, and other commercial lighting areas.
Further versions on request

Light colours: 2700K or 4000K with CRI ≥ 90
Do you have further requirements with the product?

Please contact the consultant team in the following VACE office:
Call an VACE consultant: 86 +760 22559792
ADD:NO.11, First Street of Wencheng RD, Xiaolan Town, Zhongshan City

Structure and characteristics
Lighting technology
8696 301
Light source:
COB
LED Power:
10W
Beam angle:
15°/24°/36°
CCT:
3000K/4000K/5700K
LED lumens:
945lm
Color rendering index:
Ra≥80
Operating temperature:
-20℃-+40℃
Working life:
30000H
The output voltage:
36V
Output current:
250mA
Housing colour:
White,Black
Pictures of application
Service
Product overview120V/60Hz, 277V/60Hz

Light source

  COB

LED Power

  40W
  30W
  20W
  10W

Beam angle

  36°
  24°
  15°

CCT

  5700K
  4000K
  3000K

LED lumens

  945lm
  3810lm
  2830lm
  1760lm

Housing colour

  White
  Black
Other ranges in the product group: Luminaires for track

VaderTrack light Series

AresTrack light Series

Smart-RTrack light Series

TelescopeTrack light Series

Smart-TTrack light Series

AnthenaTrack light Series

PallasTrack light Series
