• Patented structural design, suitable for building ceilings and ceilings with insufficient interior space, or concrete ceilings without wood ceiling
• Black light technology, excellent glare control, provides a comfortable lighting environment.
• Ultra-thin design concept, more integration with the use of the environment.
• It is used in commercial venues such as exhibition halls, galleries, bars, cafes and dining outlets
Further versions on request

Light colours: 2700K or 4000K with CRI ≥ 90
Do you have further requirements with the product?

Please contact the consultant team in the following VACE office:
Call an VACE consultant: 86 +760 22559792
ADD:NO.11, First Street of Wencheng RD, Xiaolan Town, Zhongshan City

Structure and characteristics
Lighting technology
8795 318
Light source:
COB
LED Power:
40W
Beam angle:
15°/24°/36°/60°
CCT:
3000K/4000K
LED lumens:
3520lm
Operating temperature:
-20℃-+40℃
Working life:
30000h
The output voltage:
36v
Output current:
950mA

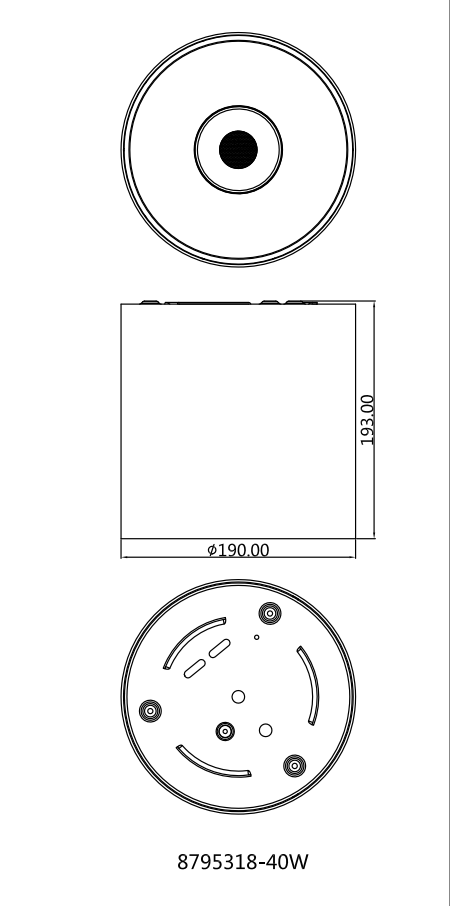

dimension:
Φ190*193mm
Housing colour:
White,Black
Installation:
Surface mounted
Color rendering index:
Ra≥90
Pictures of application
Service
Product overview120V/60Hz, 277V/60Hz

Light source

  COB

LED Power

  9W
  40W
  30W
  20w

Beam angle

  60°
  36°
  24°
  15°

CCT

  4000K
  3000K

LED lumens

  820lm
  3520lm
  25900lm
  1570lm

Housing colour

  White
  Black
Other ranges in the product group: Luminaires for track

DomeSurface Mounted Down Light series

CrocsSurface Mounted Down Light series

CoreSurface Mounted Down Light series
