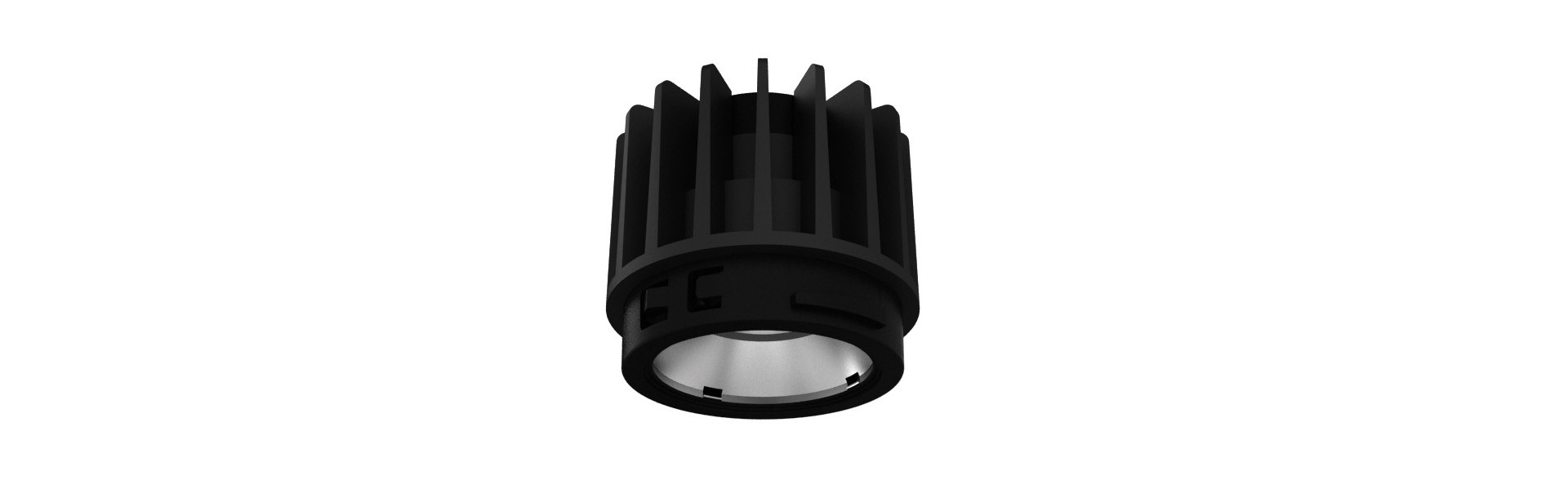

Glory

/ Glory / Grille Downlight Series / Product /

1. Die-cast Aluminum heat sink. Perfect heat sink design.
2. Horizontal 350 degree adjustable. Vertical 25 degree adjustable, suitable different lighting request./10 degree beam angle, achieve extreme height center light.
3.Modular combination design. easily configurable ability./Deep reflector, excellent anti-glare design.
4.Male and female connect of driver and housing, maintain convenient.

5. Widely applied to fashion shopand other commercial establishments./Excellent optical design, with lens and reflector

Further versions on request

Light colours: 2700K or 4000K with CRI ≥ 90
Do you have further requirements with the product?

Please contact the consultant team in the following VACE office:
Call an VACE consultant: 86 +760 22559792
ADD:NO.11, First Street of Wencheng RD, Xiaolan Town, Zhongshan City

Lighting technology
8833 311
Light source：
COB
LED Power：
9W
Beam angle：
15°/24°/40°
CCT：
3000K/4000K
LED lumens：
670lm
Color rendering index：
Ra≥80
Operating temperature：
-20℃-+40℃
Working life：
30000H
The output voltage：
36V

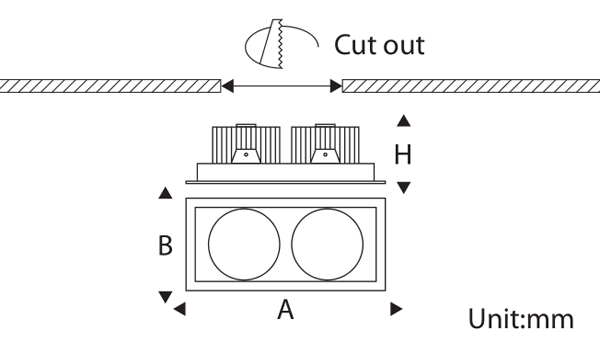

dimension：
113 x 113 x 82
Cut out：
104X104
Carton：
24pcs
Housing colour：
White,Black
Output current：
200mA
Pictures of application
Service
Product overview120V/60Hz, 277V/60Hz

Light source

  COB

LED Power

  9W
  60W
  40W
  36W
  30W
  27W
  20W
  18W

Beam angle

  40°
  38°
  24°
  15°
  10°

CCT

  4000K
  3000K

LED lumens

  670lm
  4920lm
  3026lm
  2960lm
  2460lm
  2220lm
  1513lm
  1480lm

Housing colour

  White
  Black
Other ranges in the product group: Luminaires for track

prismateGrille Downlight Series

StyleGrille Downlight Series

GloryGrille Downlight Series
