Style

/ Style / Grille Downlight Series / Product /

 • Series design, deep anti-glare design, effectively reduce glare
 •The module rotates 360° horizontally and 60° vertically to meet different illumination angles
 • Narrow frame design, perfect combination of luminaire and installation smallpox, enhance the beauty of space
 • The light body can be freely stretched downward upward to meet the high demand of different layers
Further versions on request

Light colours: 2700K or 4000K with CRI ≥ 90
Do you have further requirements with the product?

Please contact the consultant team in the following VACE office:
Call an VACE consultant: 86 +760 22559792
ADD:NO.11, First Street of Wencheng RD, Xiaolan Town, Zhongshan City

Lighting technology

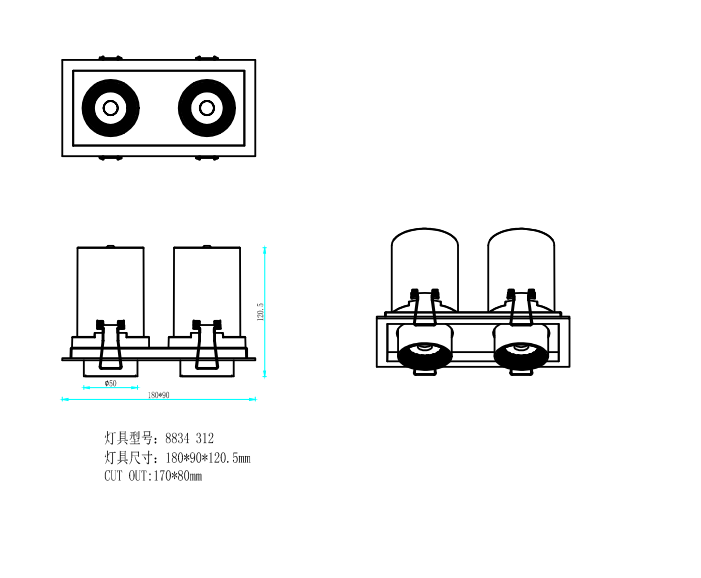

8834 312
Light source：
COB
LED Power：
12W
Beam angle：
15°/24°/36°/60°
CCT：
3000K/4000K/5700K
LED lumens：
1890lm
Color rendering index：
≥80
Operating temperature：
-20℃-+40℃
Working life：
50000h
The output voltage：
36V
Output current：
2*270mA
Cut out：
Φ185*100*120
Carton：
16pcs
Housing colour：
White,Black
Pictures of application
Service
Product overview120V/60Hz, 277V/60Hz

Light source

  COB

LED Power

  12W

Beam angle

  60°
  38°
  36°
  24°
  15°

CCT

  5700K
  5000K
  4000K
  3000K

LED lumens

  945lm
  1890lm
  1000lm

Housing colour

  White
  Black
