1. Modular LED engine.
2. Surface mount color and photoelectric equipment change various option freely to satisfy different request.Meanwhile it can reduce pressure of customer stock.
3. Black light technical design, excellent glare control technical, improve comfortable light environment.
4. Integrated design with built-in driver.
5. Widely applied to hotel,restaurant and other commercial lighting and household lighting area.
Further versions on request

Light colours: 2700K or 4000K with CRI ≥ 90
Do you have further requirements with the product?

Please contact the consultant team in the following VACE office:
Call an VACE consultant: 86 +760 22559792
ADD:NO.11, First Street of Wencheng RD, Xiaolan Town, Zhongshan City

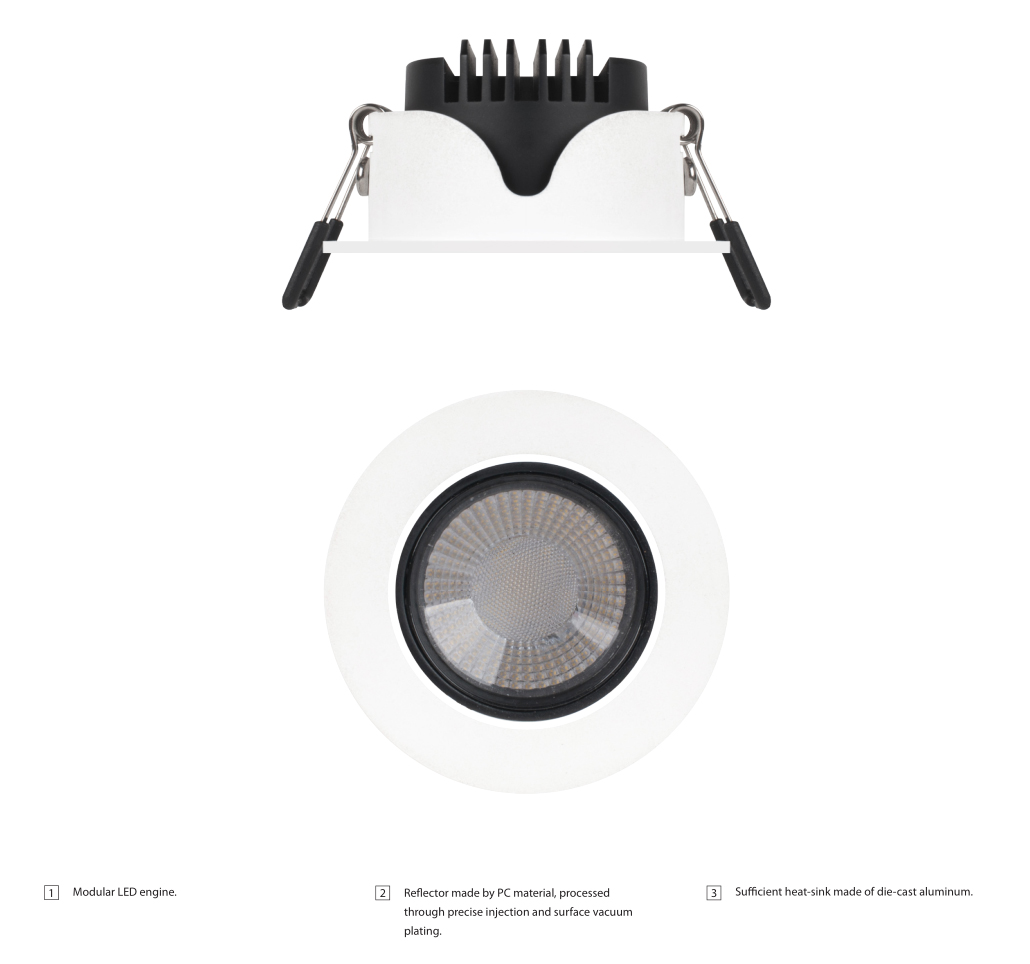

Structure and characteristics
Lighting technology
8896 301
Light source:
SMD
LED Power:
3W
Beam angle:
24°
CCT:
3000K/4000K/5700K
LED lumens:
220lm
Color rendering index:
Ra≥80
Operating temperature:
-20℃-+40℃
Working life:
30000H
The output voltage:
220-240V 50/60Hz
dimension:
Ø60 x 29
Cut out:
Ø50
Carton:
48pcs
Housing colour:
White,Black
Pictures of application
Service
Product overview120V/60Hz, 277V/60Hz

Light source

  SMD

LED Power

  5W
  3W

Beam angle

  24°

CCT

  5700K
  4000K
  3000K

LED lumens

  400lm
  220lm

Housing colour

  White
  Black
Other ranges in the product group: Luminaires for track

ChordCeiling spotlight Series

WitCeiling spotlight Series

BrightCeiling spotlight Series

GloryCeiling spotlight Series
