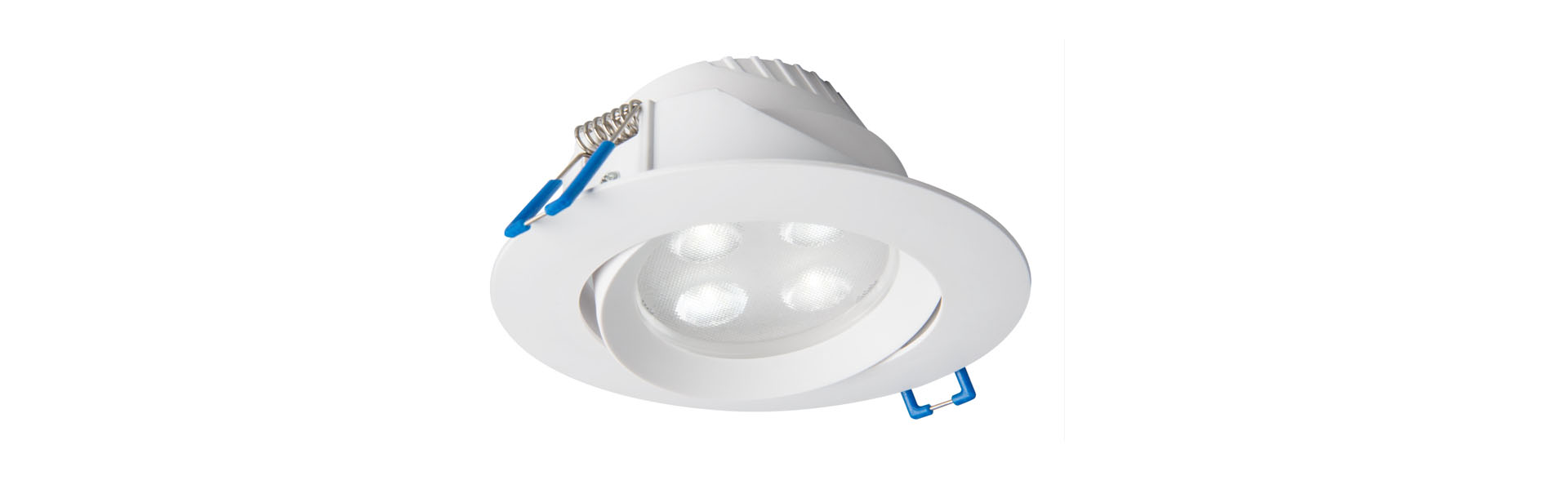

Chord

/ Chord / Ceiling spotlight Series / Product /

1. Industrial plastic frame, choose economic and reliable materials. Composite material, reinforced insulation,environmental protection.
2. photoelectric intergrated design with built-in driver.
3. Widely applied to household lighting and general commercial lighting areas.
Further versions on request

Light colours: 2700K or 4000K with CRI ≥ 90
Do you have further requirements with the product?

Please contact the consultant team in the following VACE office:
Call an VACE consultant: 86 +760 22559792
ADD:NO.11, First Street of Wencheng RD, Xiaolan Town, Zhongshan City

Lighting technology
8891 302
Working life：
30000H
Operating temperature：
-20℃-+40℃
Color rendering index：
Ra≥80
LED lumens：
265lm
CCT：
3000K/4000K/6000K
Beam angle：
40°
LED Power：
5W
Light source：
SMD
The output voltage：
37V

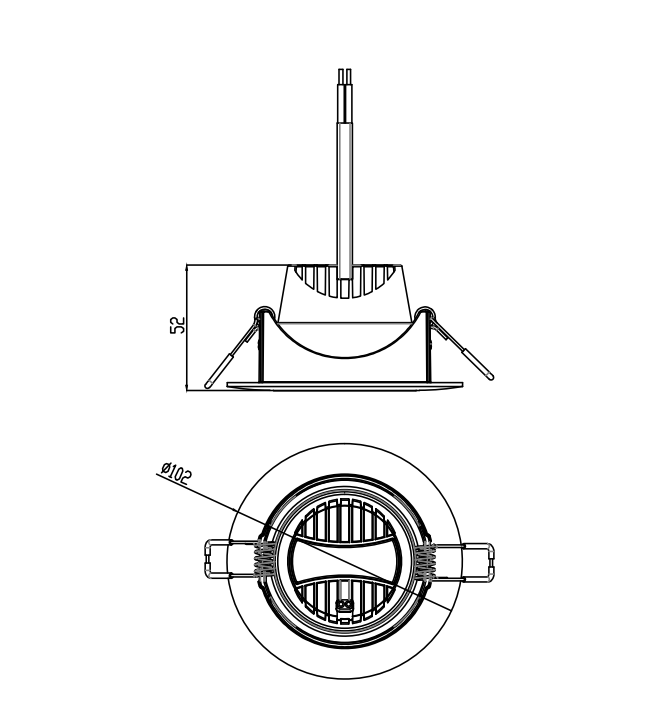

dimension：
Ø102 x 52
Cut out：
Ø85
Carton：
48pcs
Housing colour：
White,Black
Pictures of application
Service
Product overview120V/60Hz, 277V/60Hz

Light source

  SMD

LED Power

  5W
  3W

Beam angle

  40°

CCT

  6000K
  4000K
  3000K

LED lumens

  265lm
  160lm

Housing colour

  White
  Black
Other ranges in the product group: Luminaires for track

ChordCeiling spotlight Series

WitCeiling spotlight Series

BrightCeiling spotlight Series

GloryCeiling spotlight Series
