Glory

/ Glory / Ceiling spotlight Series / Product /

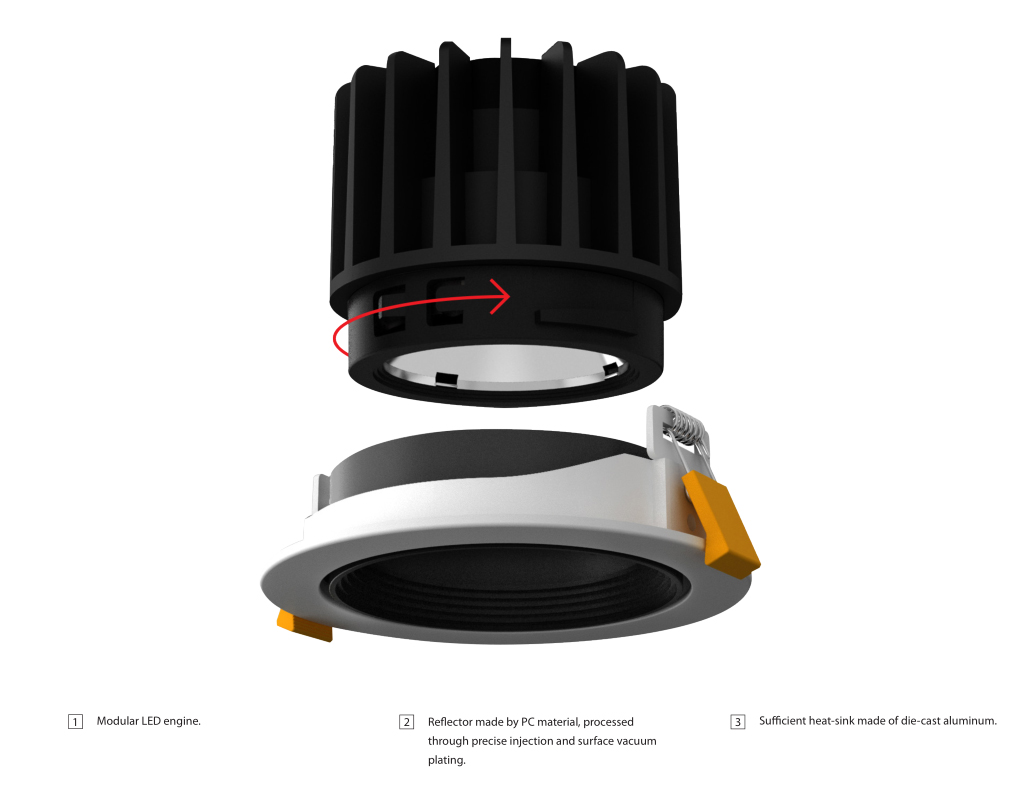

1. Die-cast Aluminum body. Perfect heat sink design.
2. Modular LED engine. easily configurable ability.
3. Male and female connection of driver and lamp body make light structure maintenance coveniently.
Further versions on request

Light colours: 2700K or 4000K with CRI ≥ 90
Do you have further requirements with the product?

Please contact the consultant team in the following VACE office:
Call an VACE consultant: 86 +760 22559792
ADD:NO.11, First Street of Wencheng RD, Xiaolan Town, Zhongshan City

Structure and characteristics
Lighting technology
8851 065
Light source：
COB
LED Power：
6W
Beam angle：
15D/20D/40D
CCT：
3000K/4000K/5700K
LED lumens：
440lm
Color rendering index：
Ra≥80
Operating temperature：
-20℃-+40℃
Working life：
30000H
The output voltage：
36V
Output current：
140mA

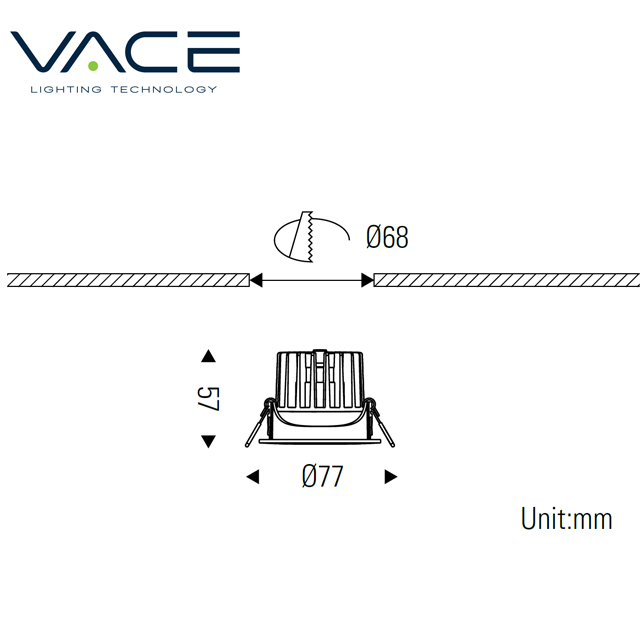

dimension：
Ø77 x 59
Cut out：
Ø68
Housing colour：
White,Black
Pictures of application
Service
Product overview120V/60Hz, 277V/60Hz

Light source

  COB

LED Power

  9W
  6W
  30W
  18W

Beam angle

  40°
  40D
  24°40°
  24°
  20D
  15°
  15D

CCT

  5700K
  4000K
  3000K

LED lumens

  670lm
  440lm
  2600lm
  1580lm

Housing colour

  White
  Black
Other ranges in the product group: Luminaires for track

ChordCeiling spotlight Series

WitCeiling spotlight Series

BrightCeiling spotlight Series

GloryCeiling spotlight Series
