Bod

/ Bod / Downlight Series / Product /

Further versions on request

Light colours: 2700K or 4000K with CRI ≥ 90
Do you have further requirements with the product?

Please contact the consultant team in the following VACE office:
Call an VACE consultant: 86 +760 22559792
ADD:NO.11, First Street of Wencheng RD, Xiaolan Town, Zhongshan City

Lighting technology
8884 306
Light source：
COB
LED Power：
70W
Beam angle：
24°40°60°
CCT：
3000K / 4000K / 5700K
LED lumens：
6460m
Color rendering index：
Ra≥80
Operating temperature：
-20-+40℃
The output voltage：
36V
Output current：
1700mA

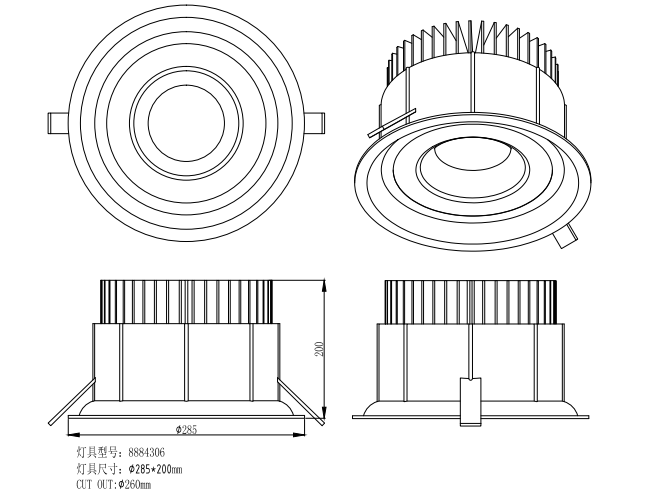

dimension：
Ø260
Cut out：
Ø285* 200
Pictures of application
Service
Product overview120V/60Hz, 277V/60Hz

Light source

  COB

LED Power

  70W
  50W
  40W
  30W
  20W

Beam angle

  24°40°60°
  1820lm

CCT

  3000K
   5700K
   4000K

LED lumens

  6460m
  5110lm
  3800lm
  2790lm
  24°40° 60°

Housing colour
