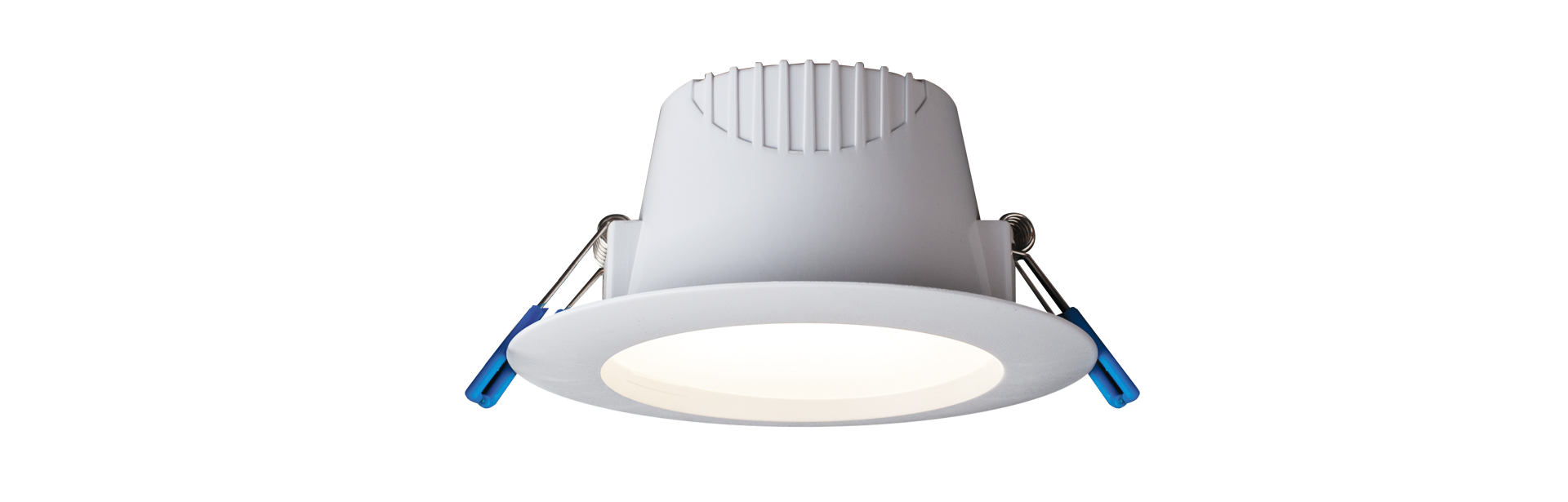

Bror

/ Bror / Downlight Series / Product /

1. Industrial plastic frame, choose economic and reliable materials. Composite material, reinforced insulation,environmental protection.
2. photoelectric intergrated design with built-in driver.
3. Widely applied to household lighting and general commercial lighting areas.
Further versions on request

Light colours: 2700K or 4000K with CRI ≥ 90
Do you have further requirements with the product?

Please contact the consultant team in the following VACE office:
Call an VACE consultant: 86 +760 22559792
ADD:NO.11, First Street of Wencheng RD, Xiaolan Town, Zhongshan City

Lighting technology
8892 325
Light source：
SMD
LED Power：
3W
Beam angle：
80°
CCT：
3000K/4000K/6000K
LED lumens：
180lm
Color rendering index：
Ra≥80
Operating temperature：
-20℃-+40℃
Working life：
30000H
The output voltage：
19V
dimension：
Ø92 x 52
Cut out：
Ø75
Carton：
48pcs
Housing colour：
White,Black
Output current：
140mA
Pictures of application
Service
Product overview120V/60Hz, 277V/60Hz

Light source

  SMD

LED Power

  3W

Beam angle

  80°

CCT

  6000K
  5700K
  4000K
  3000K

LED lumens

  180lm
  160lm

Housing colour

  White
  Silver
  Black
