1. Die-cast Aluminum body. Perfect heat sink design.
2. Modular LED engine. easily configurable ability.
3.Male and female connect of driver and housing, maintain convenient.
4.Super narrow edge design, just 8mm, integrated into installation environment.
Further versions on request

Light colours: 2700K or 4000K with CRI ≥ 90
Do you have further requirements with the product?

Please contact the consultant team in the following VACE office:
Call an VACE consultant: 86 +760 22559792
ADD:NO.11, First Street of Wencheng RD, Xiaolan Town, Zhongshan City

Structure and characteristics
Lighting technology
8851 363
Light source:
COB
LED Power:
30W
Beam angle:
15°/24°/ 40°
CCT:
3000K/4000K/5700K
LED lumens:
2090lm
Color rendering index:
Ra≥80
Operating temperature:
-20℃-+40℃
Working life:
30000H
The output voltage:
36V
Output current:
750mA

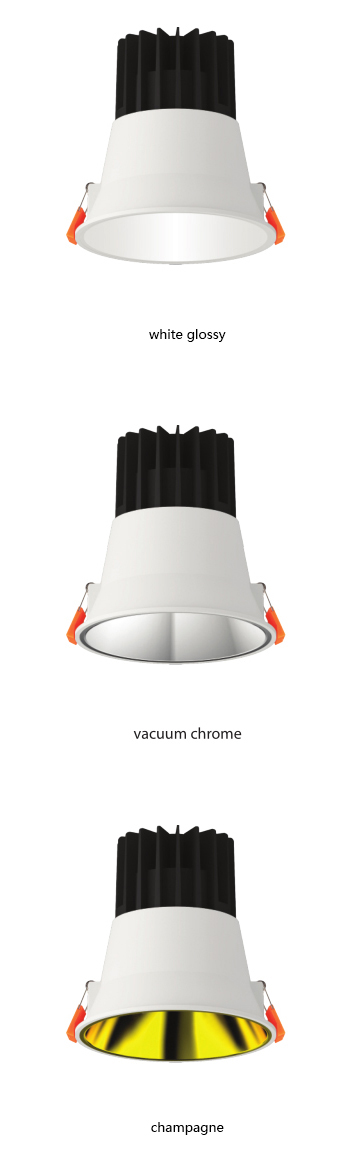

Housing colour:
White,Black

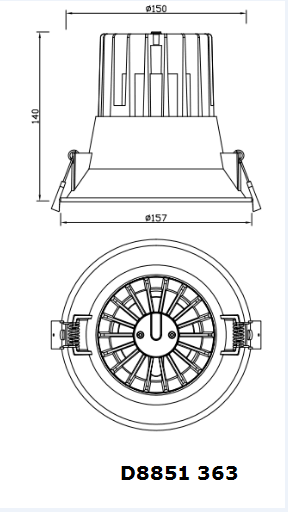

dimension:
Ø150
Cut out:
Ø157* 140
Pictures of application
Service
Product overview120V/60Hz, 277V/60Hz

Light source

  COB

LED Power

  9W
  30W
  18W

Beam angle

  24°
  15°
   40°

CCT

  5700k
  5700K
  4000K
  3000K

LED lumens

  580lm
  2090lm
  1270lm

Housing colour

  White
  Black
