• Reliable Material: Die-cast aluminum material not only guarantees corrosion protection and rust prevention but improves the heat dissipation efficiency

• Perfect Illumination: Deep anti-glare design provide sufficient light for general lighting without glare, bring a cozy and warm ambiance for your sight

• Space-saving Solution: Ultra-thin LED recessed ceiling light, high brightness. Only requires 30mm clearance of ceiling space, perfect solution for your narrow ceiling that doesn't fit for a can

• large wattage: External constant current isolated driver, easily connected by male and female plugs, release the limit of wattage. The range of wattage for    your option up to 40W

Further versions on request

Light colours: 2700K or 4000K with CRI ≥ 90
Do you have further requirements with the product?

Please contact the consultant team in the following VACE office:
Call an VACE consultant: 86 +760 22559792
ADD:NO.11, First Street of Wencheng RD, Xiaolan Town, Zhongshan City

Lighting technology
8897 318
Light source:
COB
LED Power:
40w
Beam angle:
100°
CCT:
3000K/4000K/6000K
LED lumens:
3780lm
Operating temperature:
-20℃-+40℃
Working life:
50000h
The output voltage:
28-40V
Output current:
980mA

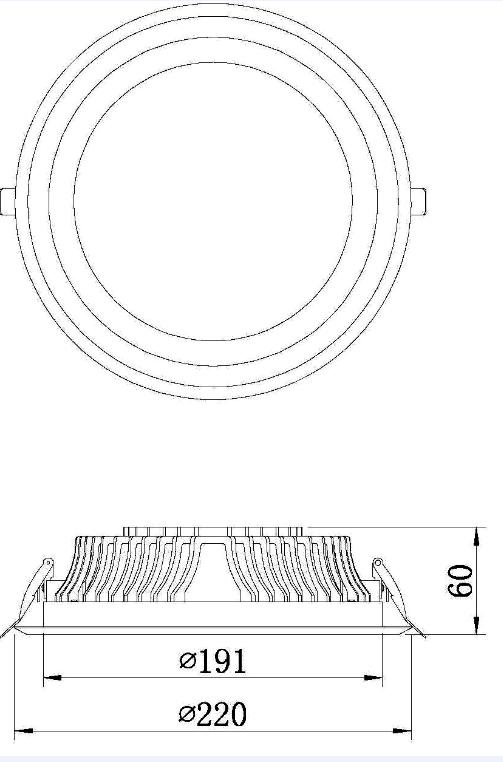

dimension:
Φ220*60mm
Cut out:
Φ200mm
Carton:
12pcs
Pictures of application
Service
Product overview120V/60Hz, 277V/60Hz

Light source

  COB

LED Power

  7W
  40w
  30W
  20W
  10w

Beam angle

  65°
  100°

CCT

  6000K
  4000K
  3000K

LED lumens

  956lm
  615lm
  3780lm
  3060lm
  1852lm

Housing colour

  White
  Nickel
