• Serialization design, 4-inch, 6-inch, 8-inch to meet the different levels of high illumination requirements

 • SMD and Cob two kinds of light source specifications are optional

 • The light source deep anti-glare structure design, with the high concentrating lens, effectively eliminates the redundant sub-spot, UGR< 19

 • The IP44 is designed for use in humid spaces
Further versions on request

Light colours: 2700K or 4000K with CRI ≥ 90
Do you have further requirements with the product?

Please contact the consultant team in the following VACE office:
Call an VACE consultant: 86 +760 22559792
ADD:NO.11, First Street of Wencheng RD, Xiaolan Town, Zhongshan City

Lighting technology
8899 318P
Light source:
COB
LED Power:
45W
Beam angle:
45°
CCT:
3000K/4000K/5700K
LED lumens:
3600lm
Color rendering index:
≥80
Operating temperature:
-20℃-+40℃
Working life:
50000h
The output voltage:
37V
Output current:
1050mA

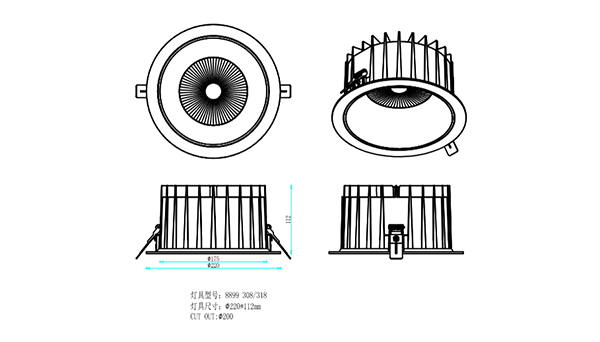

Cut out:
Φ200mm
Carton:
8pcs
Housing colour:
White
Pictures of application
Service
Product overview120V/60Hz, 277V/60Hz

Light source

  SMD
  COB

LED Power

  50W
  45W
  35W
  30W
  20W
  18W

Beam angle

  50°
  45°

CCT

  5700K
  4000K
  3000K

LED lumens

  4000lm
  3600lm
  3200lm
  2800lm
  2400lm
  1840lm
  1467lm
  1440lm

Housing colour

  White
